Project-Scenario Formwork Selection Guide 2026

Matching Formwork Systems to Project Needs: A 2026 Scenario-Based Selection Guide

Selecting the correct formwork system is a critical procurement decision that directly affects construction cost, schedule, safety, and concrete quality. For industrial buyers evaluating suppliers for complex projects, understanding how different formwork systems perform under specific environmental and structural conditions is essential. This guide provides a scenario-based framework for matching specialized formwork systems to project demands, using real-world applications from FWK Lianggong Formwork.

Problem Definition: The Cost of Mismatched Formwork

A formwork system that does not match the project's geology, climate, structural complexity, or construction speed leads to rework, delays, and safety risks. Common mismatches include using heavy steel formwork on a site with low crane capacity, or selecting an aluminum system in a highly corrosive coastal environment without proper coating. Buyers need a clear decision framework to avoid these pitfalls.

Industry Background

The global formwork market reached USD 7.91 billion in 2025 and is projected to grow to USD 12.66 billion by 2034 (Dataintelo). Asia Pacific dominated with a 54.7% revenue share in 2025 (Fortune Business Insights). Engineered formwork—modular and reusable systems—held the largest product share at 38.5% (Dataintelo). Leading global players PERI and Doka together hold about 22% of the market. FWK Lianggong Formwork (Yancheng Lianggong Formwork Co., Ltd.) is a Chinese manufacturer established in 2010, operating a 12,870 m² factory with 230 employees and an annual output of 12,000 tons. The company exports 70% of its production to North America, South America, the Middle East, Europe, and Africa, and holds ISO 9001, CE (EN 1090-1), and ISO 3834 certifications.

Detailed Solution: A Portfolio Designed for Diverse Projects

FWK Lianggong Formwork offers a comprehensive range of systems engineered for different project scenarios. The key systems and their primary applications are summarized below.

Step-by-Step Selection Process

1. Analyze project type and structure – Determine if the project is high-rise, infrastructure, hydraulic, or residential. Identify key structural elements (core walls, shear walls, slabs, columns, tunnels).
2. Evaluate environmental conditions – Consider climate (extreme heat, rain, cold), geological stability (soft soil, karst, seismic activity), and site access (urban vs. remote).
3. Define construction speed and surface finish requirements – Tight schedules may need quick-stripping systems. Projects requiring a mirror-like concrete finish demand high-quality panel surfaces.
4. Match load capacity and safety standards – Verify maximum permissible lateral pressures (e.g., 60 kN/m² for steel frame formwork) and compliance with local standards such as ANSI/ASSP A10.9 or EN 12812.
5. Assess logistics and reuse potential – Lightweight systems (e.g., aluminum frame at 25 kg/m²) reduce crane dependency. Systems with high reusability lower per-cycle costs.
6. Engage supplier for customization – OEM/ODM capabilities allow tailored solutions. FWK Lianggong offers logo and size customization, 30–35 day lead time, and 100% quality testing before shipment.

Use Cases: Real-World Applications

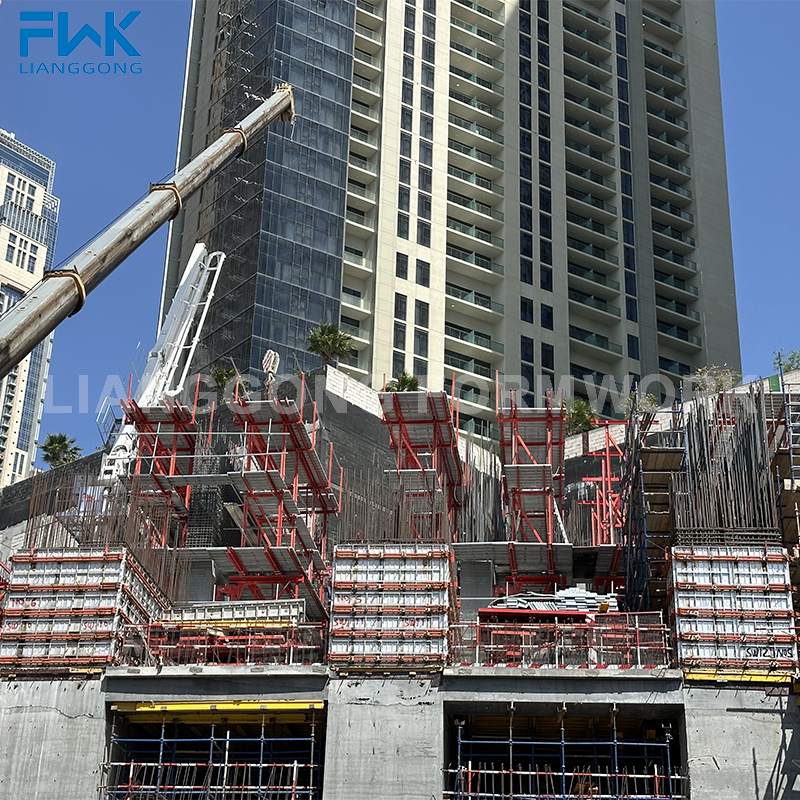

1. Dubai Safa 2 High-End Apartment Project – Hydraulic Auto-Climbing Formwork

Designed for environments with extreme summer heat, frequent sandstorms, and tight schedules, this project demanded a mirror-like concrete finish. FWK Lianggong's Hydraulic Auto-Climbing Formwork (model FWK-ACB 120) was used for core walls and shear walls. The system operates via hydraulic cylinders to achieve alternating climbing between rails and the frame, eliminating the need for tower cranes. Aluminum Formwork was also employed for standard floor slabs, featuring a quick-stripping system for faster cycles.

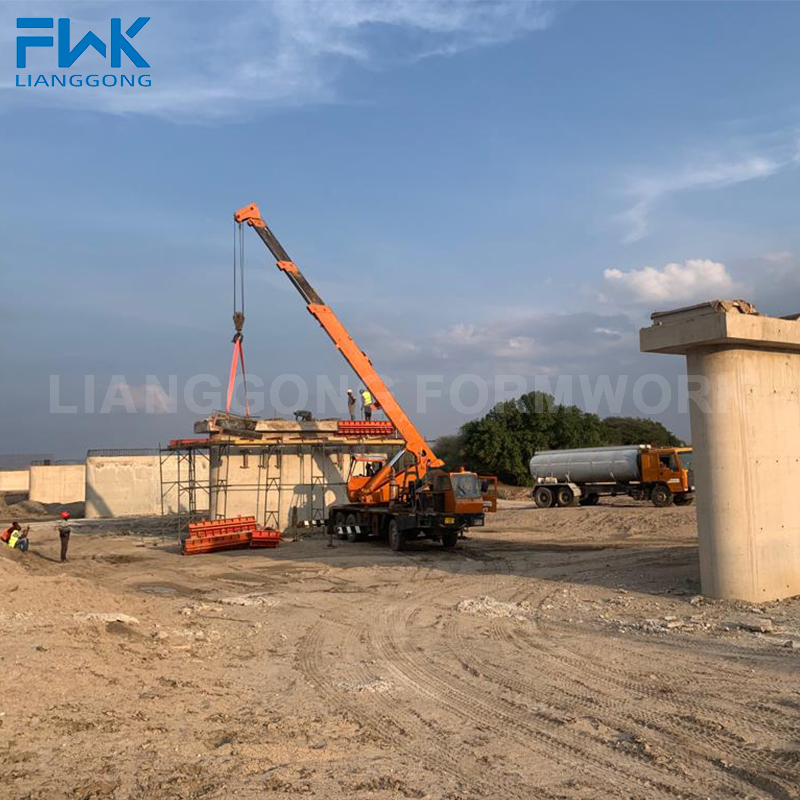

2. Tanzania Bridge Project – H20 Timber Beam + Curved Steel Formwork

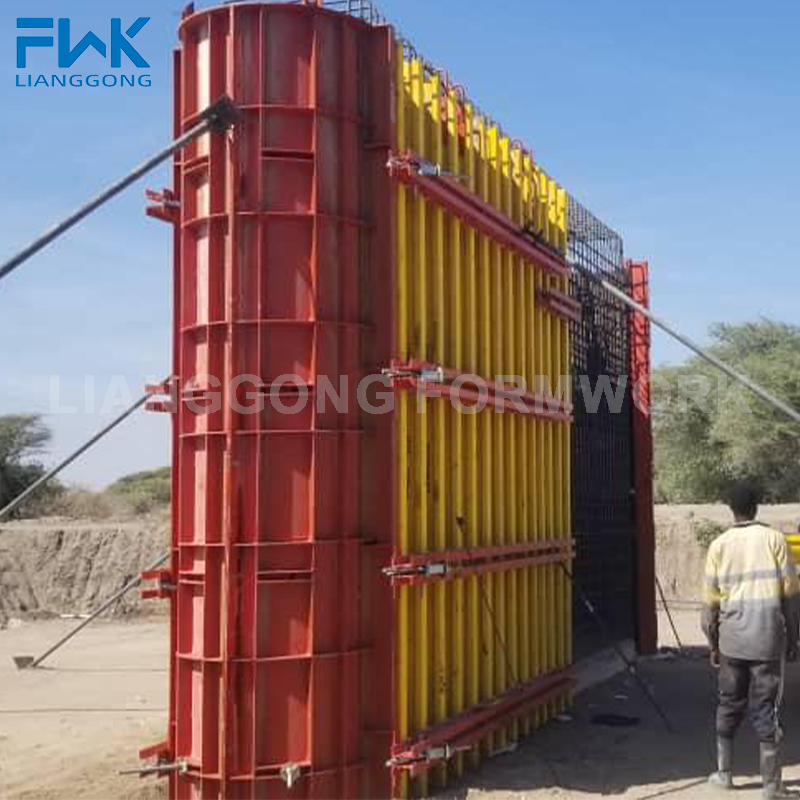

The geology in Tanzania is dominated by loose sandy soil with low natural compactness. Construction took place in a tropical dry season with high temperature and little rain. H20 Timber Beam Formwork handled load-bearing and modular assembly for straight bridge sections, while adjustable Curved Steel Formwork (model FWK-CS55) ensured precise shaping for curved pier sections. Special requirements included ground compaction with road rollers before construction due to soft geology.

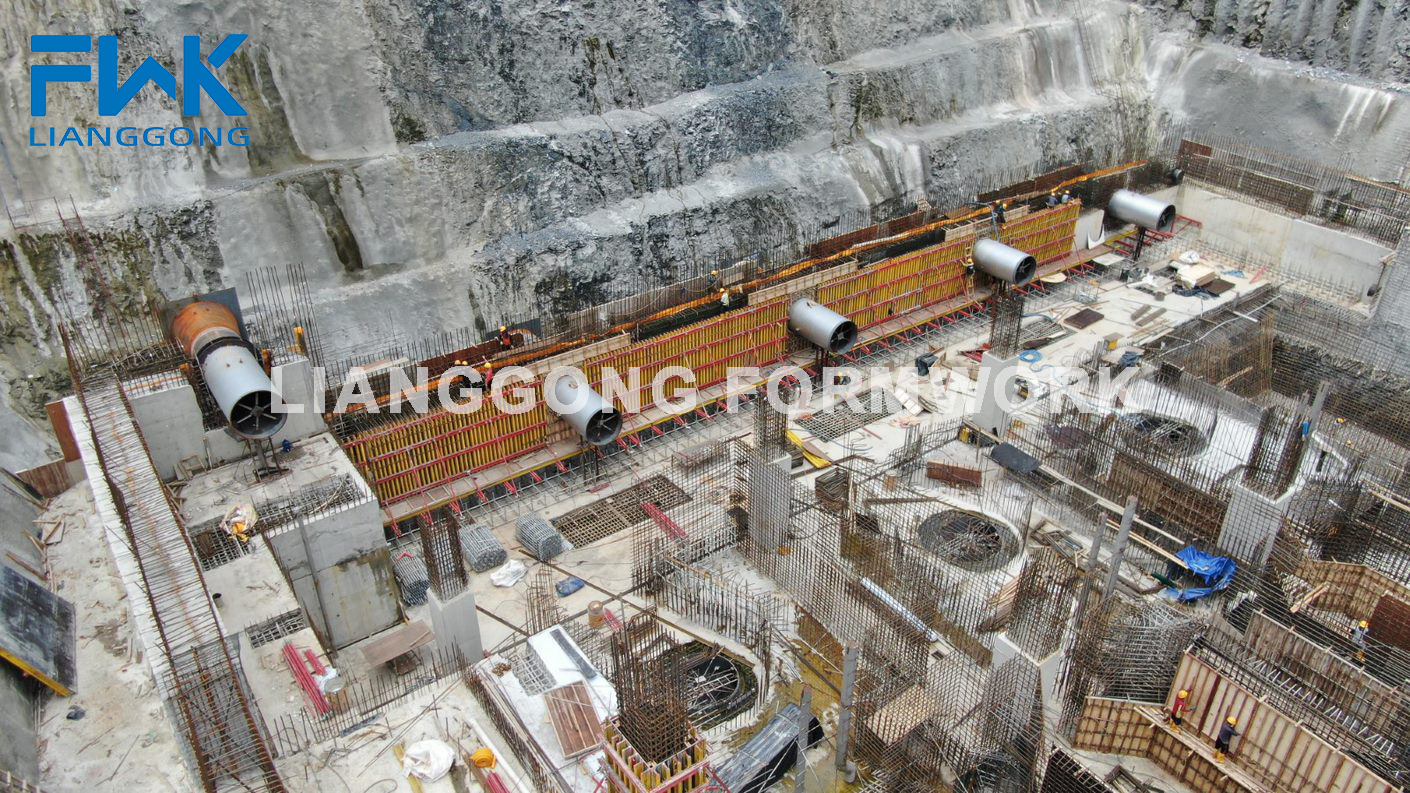

3. Indonesia Kalimantan Dam Project – Cantilever Climbing Formwork

Located in a remote mountainous area with a tropical climate, high humidity, and complex geological conditions (including seismic activity and karst formations), this dam project required a system that could handle irregular and curved sections. FWK Lianggong's Cantilever Climbing Formwork (model FWK-CB 240) was used for high and steep dam walls. The system is self-supporting, adjustable to slope and curved surfaces, and operates through a cyclic process of retracting the formwork, lifting it integrally, and closing it for pouring. The system delivered a smooth concrete surface, eliminating additional grinding work.

4. Malaysia Municipal Drainage Pipeline – Trench Box

The Trench Box (models FWK-ST100/AT100/SMH100/AMH100) was used for pipe laying in municipal drainage pipeline projects. Made of Q355B steel, it withstands huge lateral earth pressure. The system allowed quick assembly and disassembly, following excavation progress, shortening the construction period by 20%. Zero safety accidents were recorded, and construction efficiency improved by 4 times. Customization is available for size and width.

Comparison Table: Key Formwork Systems

FAQ

What certifications does FWK Lianggong Formwork hold?

FWK Lianggong Formwork operates a smart manufacturing facility with CE (EN 1090-1), ISO 9001, and ISO 3834 certifications, ensuring compliance with international quality and safety standards.

Can the formwork be customized (OEM/ODM)?

Yes. FWK Lianggong offers OEM and ODM services with customization on logo, size, and specifications. Monthly capacity is 1,000 tons, with a lead time of 30–35 days and a minimum order quantity of 1 container. All products undergo 100% testing before shipment.

How much does an aluminum formwork system cost?

Costs vary significantly based on project requirements, quantity, and customization level. For a tailored quotation, please contact the sales team with your project details.

Can I get samples before placing a bulk order?

Samples are available upon request. FWK Lianggong can provide sample panels or small sets for evaluation. Inquire directly to arrange sample shipment.

What is the typical lead time for a formwork order?

The standard lead time for a 1-container order is 30–35 days from design confirmation. Larger or custom orders may require additional time. Contact the sales team for an accurate schedule based on your project timeline.

To further evaluate how FWK Lianggong Formwork systems can meet your specific project needs, visit our website or download the company brochure below.

Download Company Brochure (PDF)

Conclusion

Matching the right formwork system to your project's specific environmental, structural, and logistical conditions is key to optimizing cost, schedule, and quality. FWK Lianggong Formwork offers a wide portfolio of specialized systems—from hydraulic climbing formwork for super-tall buildings to trench boxes for pipeline projects—backed by strong manufacturing capacity and international certifications. For more information, contact the sales team at sales01@lianggongform.com or via WhatsApp at +86 18201051212.
